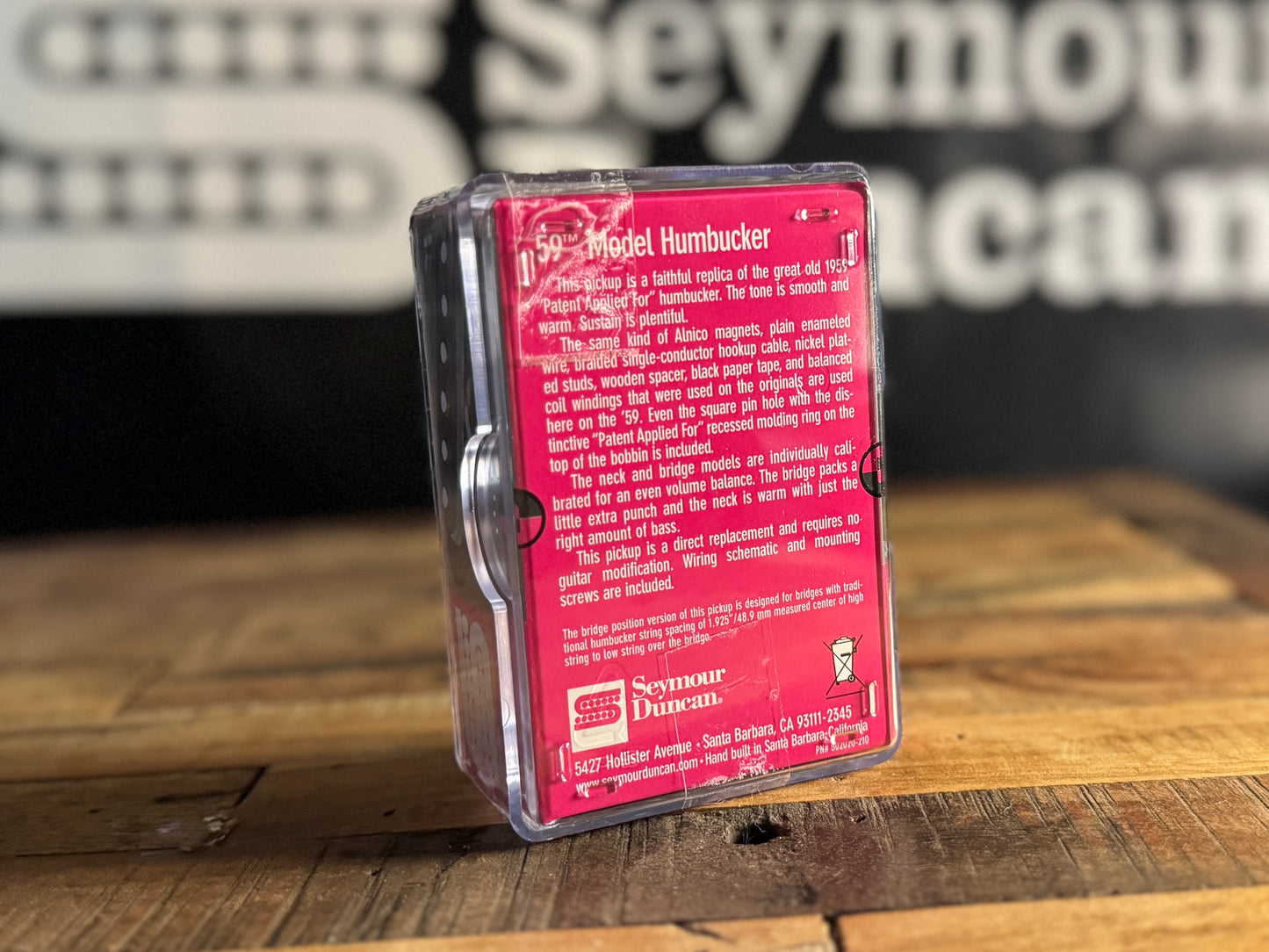

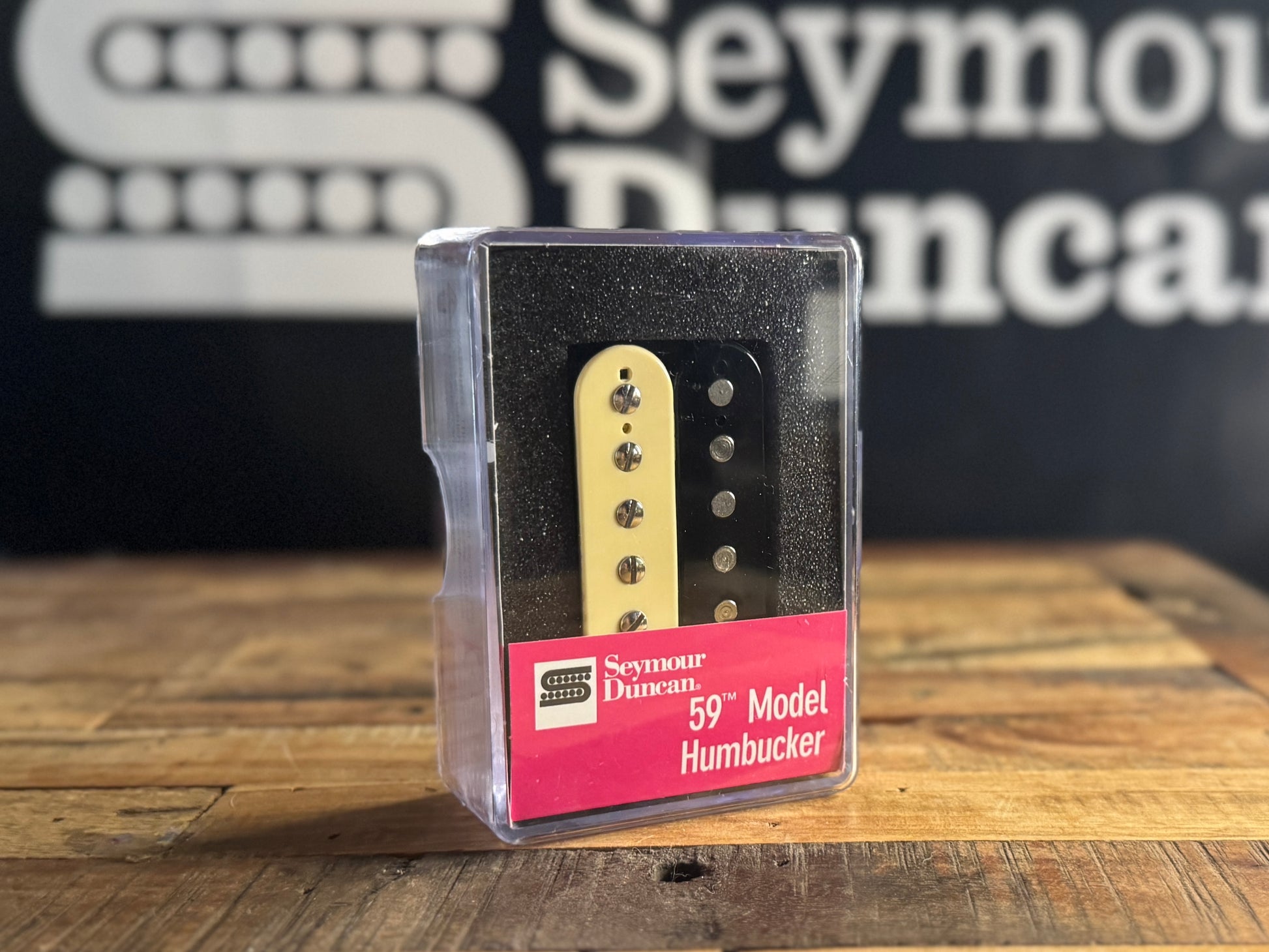

Seymour Duncan SH-1B '59 PAF Zebra Bridge Humbucker

Vintage Voltage is proud to be an authorized Seymour Duncan dealer backed by the best warranty in the business.

This is the original and ultimate Seymour Duncan PAF humbucker. THE SH-1 59B bridge single conductor nails the PAF tones using the original magnets, materials and even the same Leesona 102 winding machines from the from the old Gibson factory in Kalamazoo, MI.

More on the SH-1 59 PAF from Seymour:

The ’59 bridge model (SH-1) is a vintage output humbucker that’s great for rock, blues, and more. Its vintage-inspired coils give it an airy quality that is firmly in the P.A.F. family, and the alnico 5 bar magnet and vacuum wax potting make it compatible with lighter guitar strings and louder amplifiers than were ever used in the 1950s. The result is a pickup with tons of old-school tonal character, but with a brighter top end, and a slightly more compressed sound.

Offered in 6-string standard humbucker and Trembucker spacings, the ’59 model features a variety of traditional vintage treatments, such as 42AWG plain enamel mag wire, long-legged nickel-silver bottom plate, vintage single-conductor braided push back lead wire, and no logo. If you opt for a four-conductor version for coil splitting, the ’59’s single coil mode is crystal clear. As with all of our P.A.F.-style pickups, the ’59 vintage output humbucker is wound on Seymour’s classic Leesona 102 pickup winding machine from the old Gibson factory in Kalamazoo, MI. Also available for neck and bridge in a passive mount 7-string configuration.
